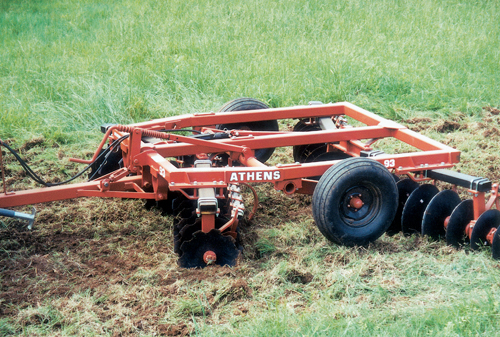

MODEL 93

STANDARD EQUIPMENT

  • Disc Blades - 22" or 24" Diameter
  • 1 ¼" Square Steel Axle
  • Relube Quadraseal Ball Bearings
  • Rigid Bearing Hangers w/ Wear Plates
  • Adjustable Angle of Cut - 15° or 19°
  • Disc Spacing - 9", 7 ½", or 9" Front & 7 ½" Rear
  • Heavy-Duty Scrapers
  • Cover Discs with Scrapers
  • Reversible Tongue Clevis
  • Gang Wrench and Tongue Jack
  • 15" – 5 Lug Wheel Hubs and Rims
  • Dual Wheels on 15' and 15' 3"
  • Lifting Hydraulics Complete
  • Mechanical Transport
OPTIONAL EQUIPMENT
  • Spring Bearing Hangers with Wear Plates
  • Dual Wheels on 9' 4" - 14' 1"
  • Balk Buster


FEATURES
Bearings
Strong relube Quadraseal Ball Bearings on the Model 93 mean long life and less downtime. The Spring Bearing Hangers feature the Double-Row Tapered Roller Bearings with unsurpassed durability.





Choice Of Discs
22" or 24" Cutout or Smooth Discs are offered on the Model 93.  The disc blades are made from the highest quality steel for superior cutting and durability.

Bearing Hangers
From Rigid Bearing Hangers for pasture land, to Spring Bearing Hangers for plantations, the Model 93 is the perfect choice for smaller farms plantations and ranches.



SPECIFICATIONS
WIDTH
OF CUT
NUMBER
OF DISCS
NUMBER OF
BEARINGS
APPROX
WEIGHT (lbs)

*APPROX
DBHP

9' 4"
24,26,28
8
2,898
60-75
10' 6"
28,30,32
8
3,123
70-85
12' 2"
32
12
3,493
85-95
12' 11"
36 or 40
12
3,569
90-100
13' 6"
36
12
3,707
95-110
14' 1"
40 or 44
12
3,754
100-120
15' 0"
40
16
4,751
100-125
15' 3"
44 or 48
16
5,642
110-130
*Approximate draw bar horsepower (DBHP) is only given as a guide.
Extremely hard, soft, hilly, or boggy conditions will change these figures.

CLICK HERE
to download Spec Sheet

This document requires Adobe® Acrobat Reader®. Click the link to the right for the free download.
