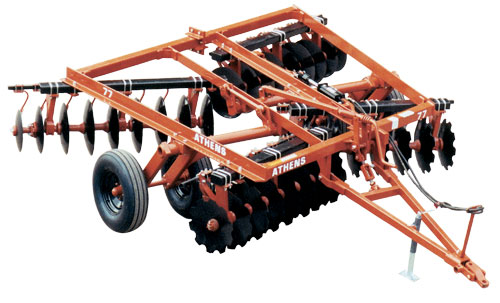

MODEL 76/77 |
STANDARD EQUIPMENT
- Disc Blades - 22" or 24" Diameter
- 1 ¼" Square Steel Axle
- Relube QUADRASEAL Ball Bearings
- Adjustable Angle of Cut - 15° or 18°
- Disc Spacing - 9", 7 ½", or 9" Front & 7 ½" Rear
- Split Wheel Carriages
- 5 Lug Wheel Hubs & Rims
- Dual Wheels on all 77’s and 14' 6" and 15' 1" 76’s
- Heavy-Duty Scrapers
- Cover Discs with Scrapers
- Reversible Tongue Clevis
- Self-Leveling Frame
- Gang Wrench and Tongue Jack
- Lifting Hydraulics Complete
- Mechanical Transport
OPTIONAL EQUIPMENT
- Rigid or Spring Bearing Hangers
EXTRA EQUIPMENT
- Dual Wheels – on 76’s, 8' 10" to 13' 5"
|
|
 |
|
|
FEATURES
The MAINFRAMES of the 76/77 combine structural steel tubing and strength angle. The Model 77 Main Frame is a two-piece bolt together frame where the Model 76 is a one-piece frame. Structural steel angle is used for the side-members allowing the frame to flex so it can follow the contour of the field, reducing stress on the frame.
 Choice of Discs
22" or 24" Cutout or Smooth Discs are offered on the Model 76/77. The disc blades are made from the highest quality steel for superior cutting and durability.
QUADRASEAL Relube Ball Bearings on the 76/77 mean long life and less downtime.
|
|
Bearing Hangers
Both Rigid and Spring Bearing Hangers feature a Wear Plate which protects the front and the bottom-side of the Bearing Housing. The Rigid Bearing Hanger is for general purpose usage in normal field conditions. Spring Bearing Hangers with double-row tapered roller bearings provide maximum flexibility in rocky and uneven land.
|
|
|
76 SPECIFICATIONS |
WIDTH
OF CUT |
NUMBER
OF DISCS |
NUMBER OF
BEARINGS
|
APPROX
WEIGHT (lbs) |
|
8' 10" |
24, 26, or 28 |
8 |
2,900 |
60-70 |
10' 3" |
28, 30, or 32 |
8 |
3,200 |
70-80 |
11' 1" |
34 or 36 |
12 |
3,500 |
75-85 |
11' 8" |
32 |
12 |
3,400 |
75-90 |
13' 1" |
36 |
12 |
3,700 |
90-100 |
13' 6" |
40 or 44 |
12 |
3,800 |
90-110 |
14' 6" |
40 |
12 |
3,900 |
95-115 |
15' 1" |
44 or 48 |
12 |
4,200 |
100-120 |
*Approximate draw bar horsepower (DBHP) is only given as a guide.
Extremely hard, soft, hilly, or boggy conditions will change these figures.
|
77 SPECIFICATIONS |
WIDTH
OF CUT |
NUMBER
OF DISCS |
NUMBER OF
BEARINGS |
APPROX
WEIGHT (lbs) |
|
11' 1" |
34 or 36 |
12 |
3,850 |
75-90 |
11' 8" |
32 |
12 |
3,825 |
75-95 |
13' 1" |
36 |
12 |
4,125 |
90-100 |
13' 6" |
40 or 44 |
12 |
4,390 |
95-110 |
14' 6" |
40 |
12 |
4,350 |
100-120 |
15' 1" |
44 or 48 |
12 |
4,325 |
105-120 |
15' 9 " |
44 |
12 |
4,528 |
110-120 |
*Approximate draw bar horsepower (DBHP) is only given as a guide.
Extremely hard, soft, hilly, or boggy conditions will change these figures.
|
|
|
