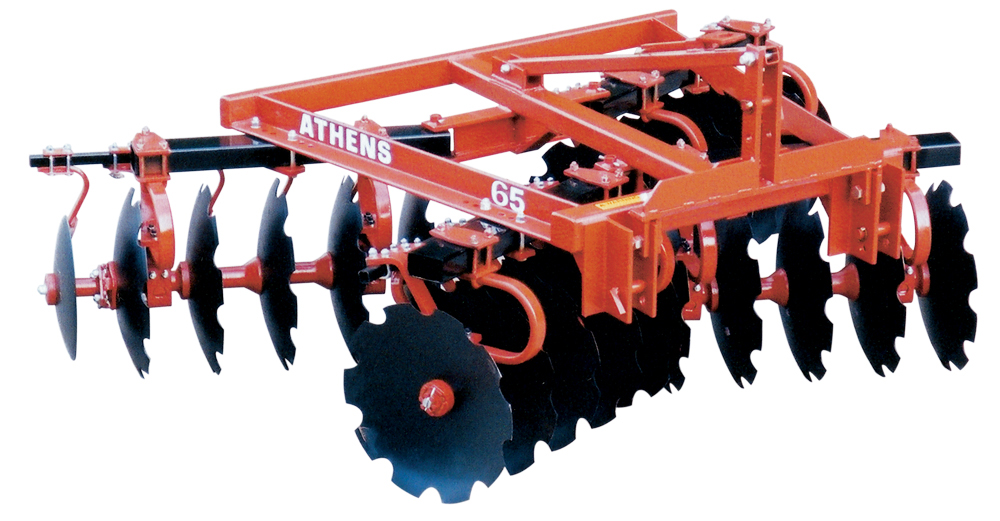

MODEL 65

STANDARD EQUIPMENT

  • Disc Blades - 22" or 24" Diameter
  • 1-¼" Square Steel Axle
  • Relube Quadraseal Ball Bearings
  • Rigid Bearing Hangers w/ Wear Plates
  • Adjustable Angle of Cut - 15°, 18°, or 21°
  • Disc Gang Wrench
  • Disc Spacing – 7-½", 9"; or 9" Front / 7-½" Rear

EXTRA EQUIPMENT

  • Spring Bearing Hangers w/ Wear Plates
  • Heavy Duty Scraper Blades
  • Cover Disc
  • Balk Buster


FEATURES
Frame Design
The frame of the Athens 65 is constructed heavy and durable steel angle and tubing welded in a compact close-coupled design, which allows for straight pulling and excellent maneuverability in small fields.

Bearings
Strong relube QUADRASEAL ball bearings on the Model 65 mean long life and less downtime.



Choice Of Discs
22" or 24" Cutout or Smooth Discs are offered on the Model 65. The disc blades are made from the highest quality steel for strength and durability.

Versatility
The Hitch is designed to adapt to a Category II Free Link or a Category II Quick Hitch.

Angle of Cut
Disc Gangs adjust individually to a 15°, 18°, or 21° cutting angle.





SPECIFICATIONS
WIDTH
OF CUT
NUMBER
OF DISCS
NUMBER OF
BEARINGS
APPROX
WEIGHT (lbs)

*APPROX
HP

8' 0"
20
8
1,700
70
8' 4"
22
8
1,800
75
9' 6"
24 or 26
8
2,000
85
*Approximate horsepower (HP) is only given as a guide.
Extremely hard, soft, hilly, or boggy conditions will change these figures.

CLICK HERE
to download Spec Sheet
