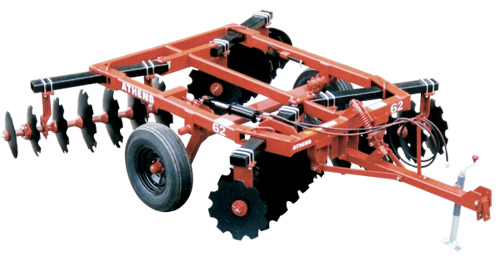

MODEL 62 |
STANDARD EQUIPMENT
- Disc Blades - 20" or 22" Diameter
- 1-1/8 " Square Steel Axle
- Relube Quadraseal Ball Bearings
- Lifting Hydraulics Complete
- Adjustable Angle of Cut - 13° to 21°
- Disc Gang Wrench
- Disc Spacing – 7-½", 9", or
9" Front / 7-½" Rear
EXTRA EQUIPMENT
- Heavy Duty Scraper Blades
- Cover Disc
- Balk Buster
|
|
|
|
|
FEATURES
Frame Design
Gangs are assembled in the factory and tightened to 750 ft. lbs. The Gang Frames are made from rigid 3 x 5" steel tubing.
Disc Gangs
Gangs are assembled in the factory and tightened to 750 ft. lbs. The Gang Frames are made from rigid 3 x 5" steel tubing.
|
|
Choice of Discs
20" or 22" Cutout or Smooth Discs are offered on the Model 62. The disc blades are made from the highest quality steel for strength and durability.
Versatility
The Tongue Clevis height can be adjusted to match the draw-bar height on the tractor.
Angle of Cut
Gangs adjust without tools by removing only one pin per gang for a 13°, 17°, or 21° cutting angle. |
|
|
SPECIFICATIONS |
WIDTH
OF CUT |
NUMBER
OF DISCS |
NUMBER OF
BEARINGS |
APPROX
WEIGHT (lbs) |
|
7' 11" |
20 |
8 |
1,646 |
40-45 |
8' 2" |
22 or 24 |
8 |
1,768 |
45-55 |
9' 4" |
24, 26, or 28 |
8 |
1,874 |
50-60 |
10' 6" |
30 or 32 |
8 |
2,088 |
50-65 |
10' 9" |
28 |
8 |
2,026 |
55-65 |
12' 2" |
32 |
12 |
2,336 |
65-75 |
12' 11" |
36 or 40 |
12 |
2,526 |
70-80 |
|
*Approximate horsepower (HP) is only given as a guide.
Extremely hard, soft, hilly, or boggy conditions will change these figures.
|
|
|
