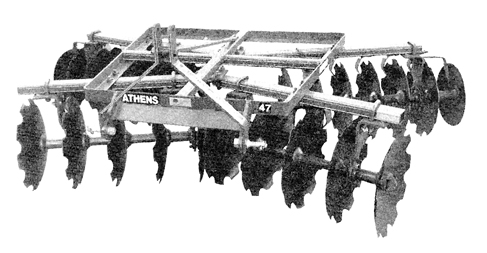

MODEL 47

STANDARD EQUIPMENT

  • Category I Hitch
  • 1" Square Steel Axle
  • Triple-Lip Sealed Ball Bearings
  • Adjustable Angle of Cut - 15° or 19°

EXTRA EQUIPMENT

  • Disc Scrapers


FEATURES
Hitch
Category I Hitch is ideal for small tractors with 25 - 30 HP. The hitch is securely braced and rigidly connected to the frame.

Frame Design
The frame of the Athens 47 is constructed of angle and steel tubing welded into a unitized assembly for strength and durability.

Disc Gangs
Gangs are assembled in the factory and tightened to 750 ft. lbs. The gang frames are made from rigid 2 x 3" steel tubing.



Choice of Discs
18" or 20" Cutout or Smooth Discs are offered on the Model 47. The disc blades are made from the highest quality steel for strength and durability.

Disc Spacing
Disc Blades can be spaced at 7", 9", or a combination of 9" front and 7" rear.



SPECIFICATIONS
WIDTH
OF CUT
NUMBER
OF DISCS
NUMBER OF
BEARINGS
APPROX
WEIGHT (lbs)

*APPROX
HP

6' 3 "
16
8
692
25
6' 5 "
18 or 20
8
735
25
7' 6 "
22 or 24
8
812
30
7' 9 "
20
8
772
30
*Approximate horsepower (HP) is only given as a guide.
Extremely hard, soft, hilly, or boggy conditions will change these figures.


CLICK HERE
to download Spec Sheet

This document requires Adobe® Acrobat Reader®. Click the link to the right for the free download.
