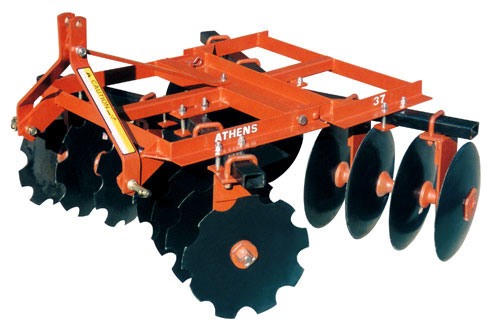

Athens Plow - Model 37 Lift-Type Tandem Disc Harrow

MODEL 37

STANDARD EQUIPMENT

Category I Hitch
1" Square Steel Axle
Triple-Lip Sealed Ball Bearings
Adjustable Angle of Cut - 4° or 19°
18" Cutout or Smooth Discs

FEATURES
Frame Design
The front and rear frame of the Athens 37 is constructed of angle and steel tubing, welded into a unitized assembly for strength and durability. The rear frame can be pinned in the up position to increase the weight on the front gangs for the initial pass.

Hitch
Category I Hitch is ideal for small tractors with 20 - 30 HP. The hitch is securely braced and rigidly connected to the frame.

Disc Gangs
Gangs are assembled in the factory and tightened to 750 ft. lbs. The gang frames are made from sturdy 2 x 3" steel tubing. The disc blades are made from the highest quality steel for strength and durability.

SPECIFICATIONS
WIDTH OF CUT	NUMBER OF DISCS	NUMBER OF BEARINGS	APPROX WEIGHT (lbs)	*APPROX HP
5' 2"	16	8	640	22
6' 3"	16	8	692	25
6' 5"	18 or 20	8	722	25
*Approximate horsepower (HP) is only given as a guide. Extremely hard, soft, hilly, or boggy conditions will change these figures.
