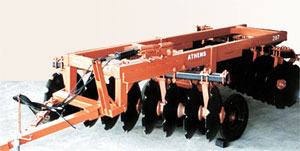

MODEL 287/288

STANDARD EQUIPMENT

  • Disc Blades - 28" or 32" Diameter
  • 2" Square Steel Axle
  • Heavy Duty Relube QUADRASEAL Ball Bearings (287)
  • Tapered Roller Bearings (288)
  • Adjustable Angle of Cut - 15°, 17°, 21°, and 25°
  • Complete Hydraulics - Lifting & Leveling
  • Dual Wheels & 6 Lug Wheel Hubs & Rims
  • Reversible Tongue Clevis
  • Heavy-Duty Scrapers
  • Extra Disc on Right Rear
  • Cover Disc with Scrapers
  • Gang Wrench and Tongue Jack
  • Mechanical Transport


FEATURES

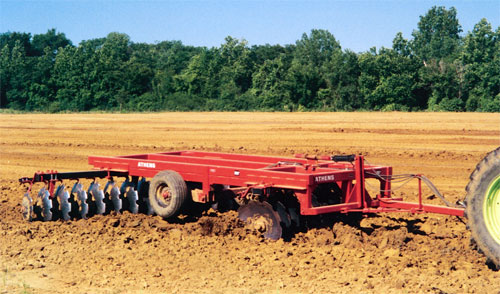

Two Main Frames are available for the Model 287 to match different widths and weight. The narrow frame (below) caries the 8', 9', and 10' units. The wide frame caries the 12', 14', and 16' units.

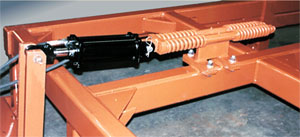

Hydraulic Leveling from the tractor seat provides positive control for varying conditions. Four strong leveling springs take the shock out of the leveling mechanism. Whether in transport or operation, front to rear leveling is at your fingertips.




The Discs on the 287 are supported by a four inch square boss on the spacer spools, rather than riding on the axle. This extra area adds strength and durability.

Choice of Discs
28" or 32" Cutout or Discs are offered on the Model 287. The disc blades are made from the highest quality steel for superior cutting and durability.

Disc Gangs use a Heavy Duty Relube Ball Bearing which is Pillow Block Mounted to provide exceptional strength and dependability.



SPECIFICATIONS
WIDTH
OF CUT
NUMBER
OF DISCS
NUMBER OF
BEARINGS
APPROX
WEIGHT (lbs)

*APPROX
DBHP

8' 0"
17
8
5,750
120
9' 0"
19
8
6,165
135
10' 0"
21
8
6,505
150
WIDE MAIN FRAME
12' 0"
25
8
8,710
180
14' 0"
29
8
9,473
210
16' 0"
33
12
10,005
240
*Approximate draw bar horsepower (DBHP) is only given as a guide.
Extremely hard, soft, hilly, or boggy conditions will change these figures.

CLICK HERE
to download Spec Sheet
