MODEL 116/119 |
STANDARD EQUIPMENT
Model 116
- Quadraseal Ball Bearings
- Rigid Bearing Hangers with Wear Guards
- Disc Blades, 22” or 24” Smooth or Cutout
- 1 1/4” Cold Rolled Square Axle
- Spacing, 71/2”, 9”, or 9” Front and 7 1/2” Rear
- Single Tapered Disc on Front
- Double Tapered Discs on Rear
- Adjustable Cutting Angle, 15° or 19°
- Cover Discs with Scrapers
- Six Lug Wheel Hubs and Rims
- Self Leveling Frame
- Lifting and Folding Hydraulics
- Reversible Tongue Clevis
- Gang Wrench and Tongue Jack
|
|
|

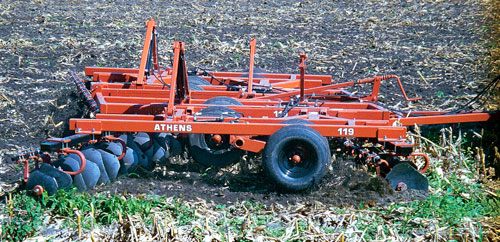

Model 119
- Double Tapered Roller Bearings
- Spring Bearing Hangers with Wear Guards
- Disc Blades, 22” Smooth or Cutout
- 1-1/4” Cold Rolled Square Gang Axle
- Spacing, 9”
- Single Tapered Disc on Front
- Double Tapered Discs on Rear
- Adjustable Cutting Angle, 15° or 19°
- Cover Discs with Scrapers
- Six Lug Wheel Hubs and Rims
- Self Leveling Frame
- Lifting and Folding Hydraulics
- Reversible Tongue Clevis
- Gang Wrench and Tongue Jack
|
|
|
|
|
The Rigid Bearing Hanger on the 116 features a Wear Plate that bolts onto the front-side of the Bearing Hanger adding extra protection to the front and bottom of the Bearing Housing. |
|
|
Spring Bearing Hanger on the 119 features a Wear Plate that bolts onto the front-side of the Bearing Hanger adding extra protection to the front and bottom of the Bearing Housing. |
|
|
FEATURES
 The Quadraseal Wheel Hubs are an exclusive ATHENS PLOW design for increased Bearing life and reduction of downtime. Our QUADRASEAL Wheel Hubs offer maximum protection from dirt and trash by combining a triple lip seal with a press fitted external trash flinger. The QUADRASEAL Bearings give added bearing life.
 The Quadraseal Double Tapered Roller Bearingsprovide the most capacity in the industry. With this added capacity, the probability of overloading is virtually eliminated. The double tapered roller bearing has a triple-lip seal that runs on a hardened, polished surface and is protected by a heavy steel washer to avoid damage from wire and trash. Between the washer and the seal is a cavity filled with grease – an additional sealing element against dirt.
 Quadraseal Ball Bearings
Strong relube QUADRASEAL ball bearings on the 116 cutout or smooth disc blades mean long life and less downtime.
|
|
 Disc Blades
Available in 22 and 24 inch sizes.
Smooth blades are best utilized in normal field conditions. They are more economical, wear longer, weigh more than cutout blades, and cut crop residue evenly.
Cutout blades are more aggressive and trap residue better than smooth blades.
 Narrow Transport
The Wings on the Athens 116/119 hinge from the Main Frame, resulting in narrower transport width and better flotation. The folding width is 11’ 6” (on 16’ 8” – 23’ 4” models) and 13’ (on the 26’ and 29’ models).
|
|
|
116/119 SPECIFICATIONS |
WIDTH
OF CUT |
*NUMBER
OF DISCS |
APPROX
WEIGHT (lbs) |
TRANSPORT
WIDTH
|
TRANSPORT
HEIGHT
|
NUMBER OF
BEARINGS |
|
Narrow Main Frame |
16' 8" |
44, 48, 52 |
7,390 |
11' 4" |
8' 8" |
16 |
120 |
19' 6" |
52, 56, 60 |
7,790 |
11' 4" |
10' 3" |
16 |
140-150 |
22' 5" |
56, 62, 68 |
8,047 |
11' 4" |
11' 6" |
16 |
150-160 |
23' 4" |
61, 66, 72 |
8,711 |
11' 4" |
12' 6" |
20 |
165 |
26' |
68, 74, 80 |
9,234 |
11' 4" |
14' |
20 |
180 |
Wide Main Frame |
26' |
70* |
9,806 |
13' |
12' 6" |
24 |
225 |
28' 8" |
78* |
10,278 |
13' |
14' |
24 |
265 |
*Includes Cover Discs
**Approximate draw bar horsepower (DBHP) is only given as a guide.
Extremely hard, soft, hilly, or boggy conditions will change these figures.
|
|
|
